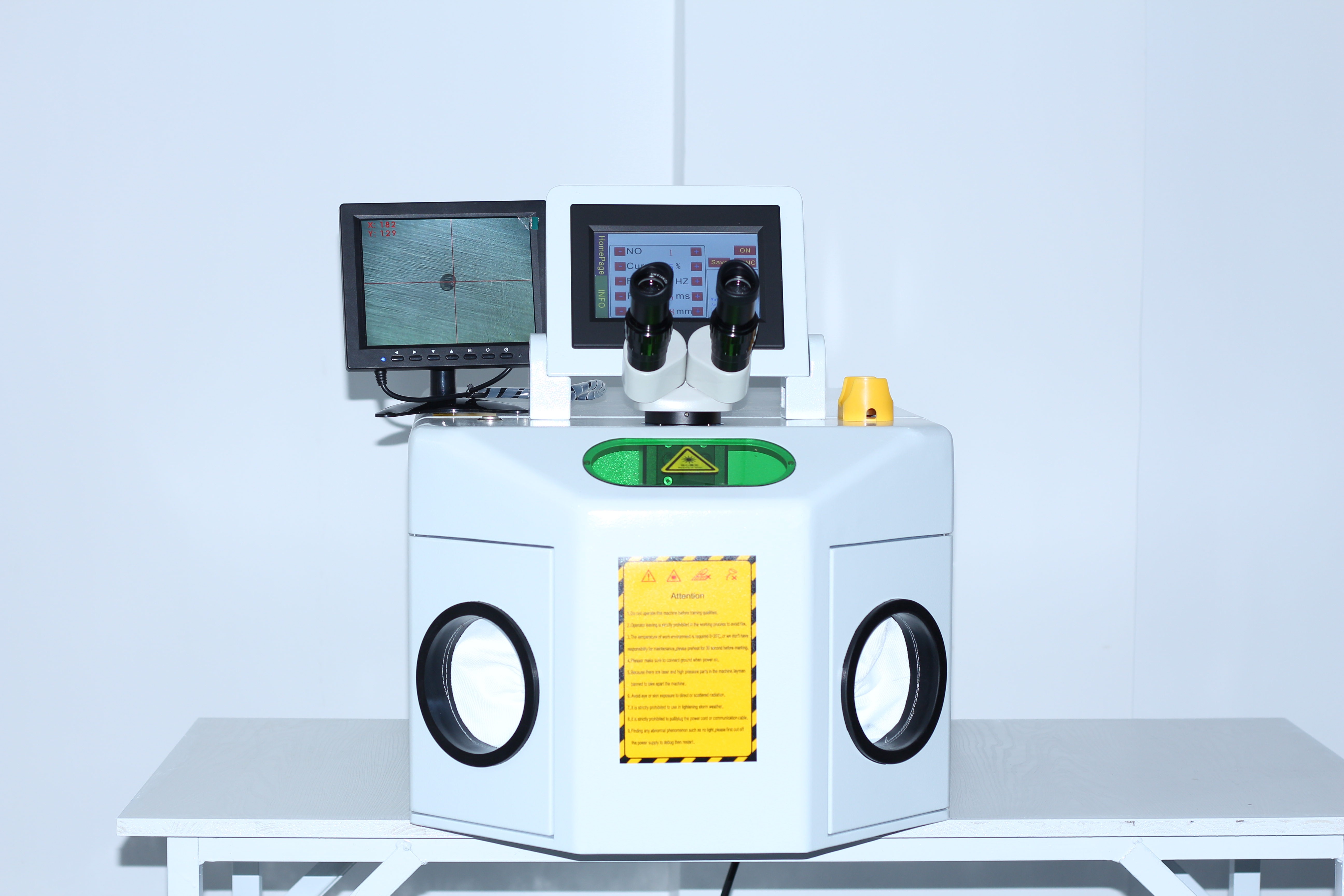

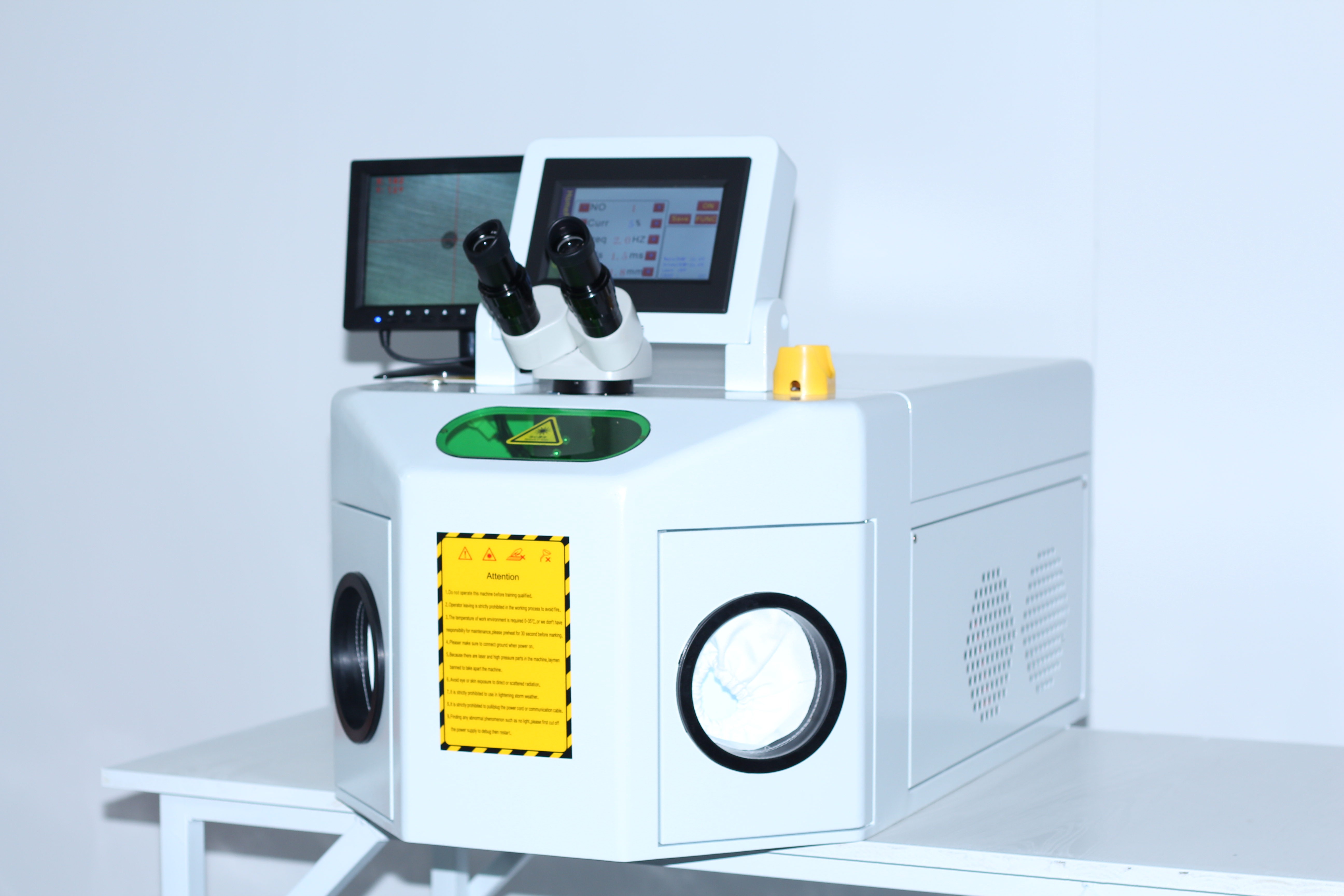

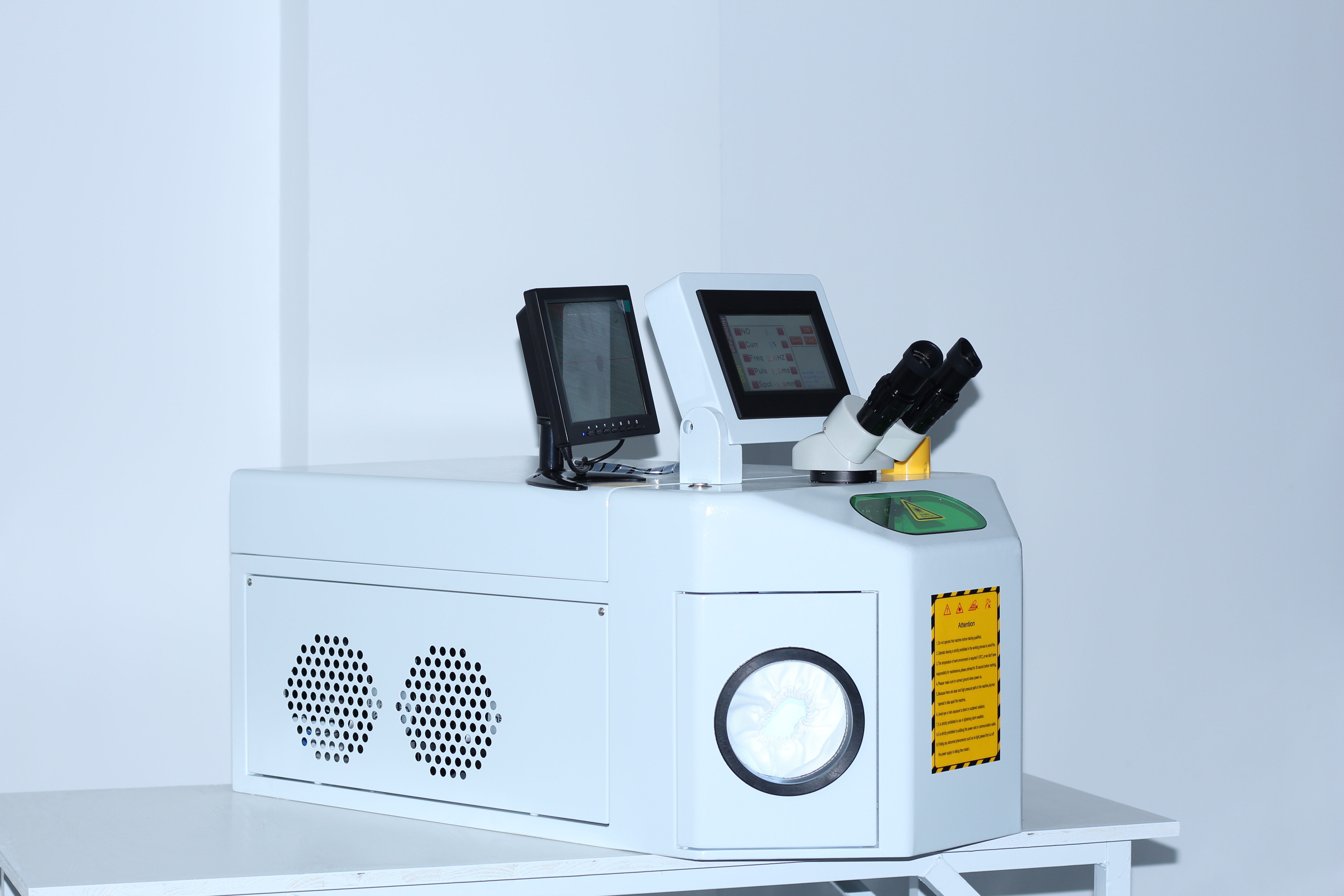

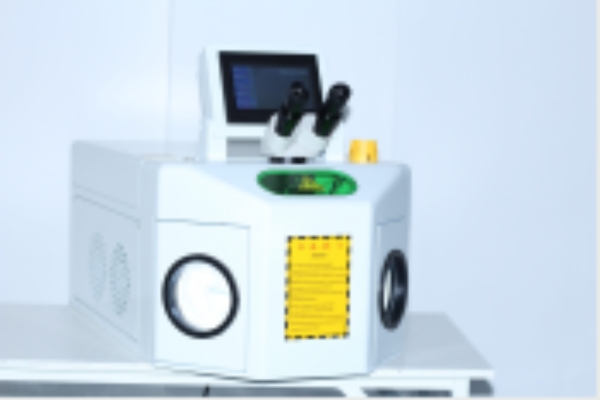

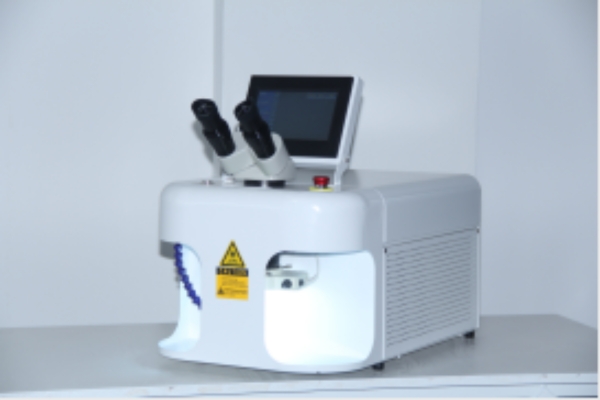

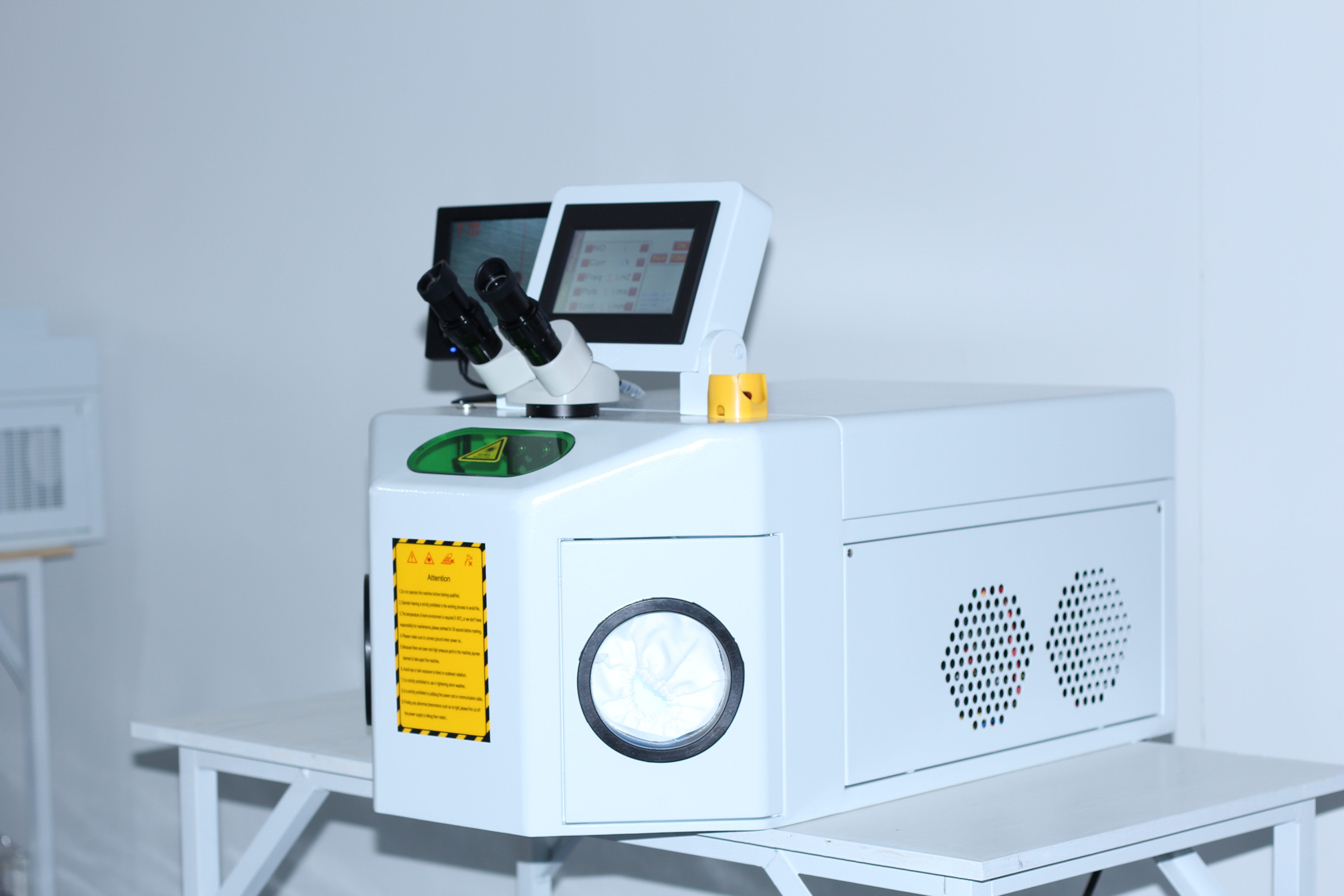

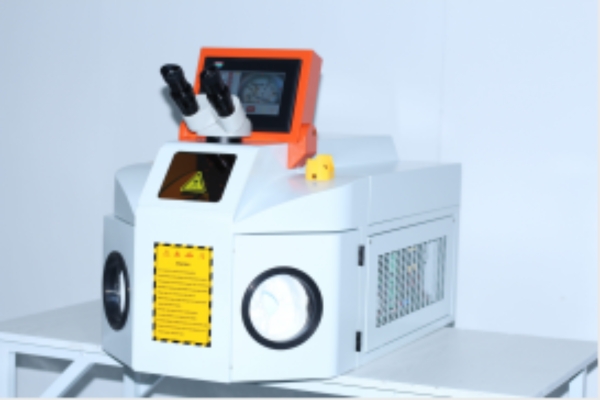

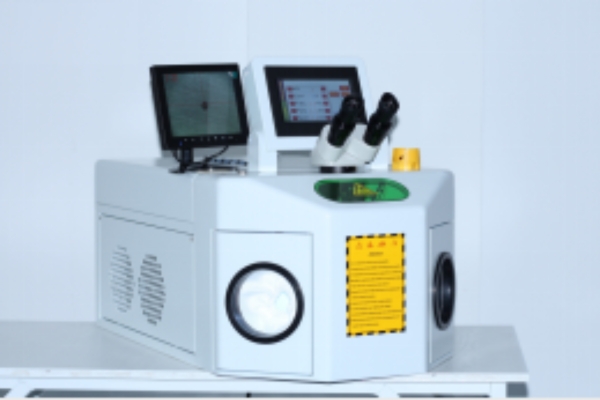

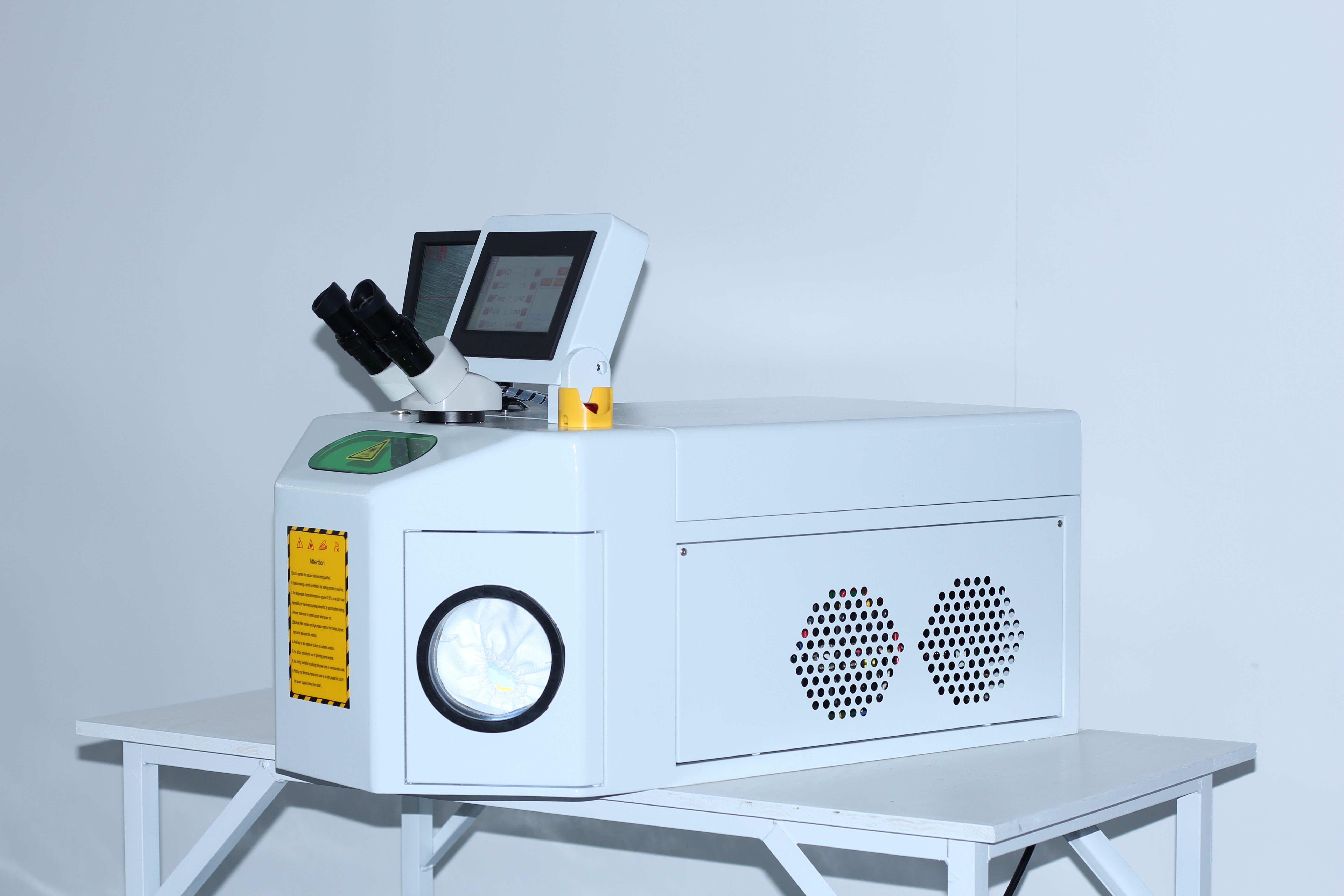

New design 200 watts laser power jewelry laser welding machine
Model: Rofer-W-200
Laser power: 200w
Application: Available weld gold silver platinum titanium and stainless steel.
Easy to operate.
High power with 100 joules energy.
Support spot and continuous weld system.
Inquire
PRODUCT DESCRIPTION: Jewelry Laser Welding Machine
 |  |  |

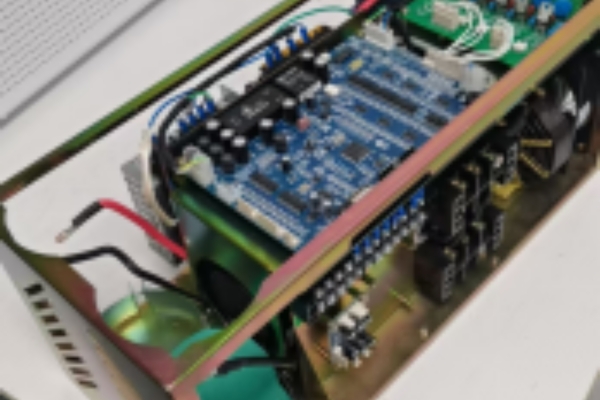

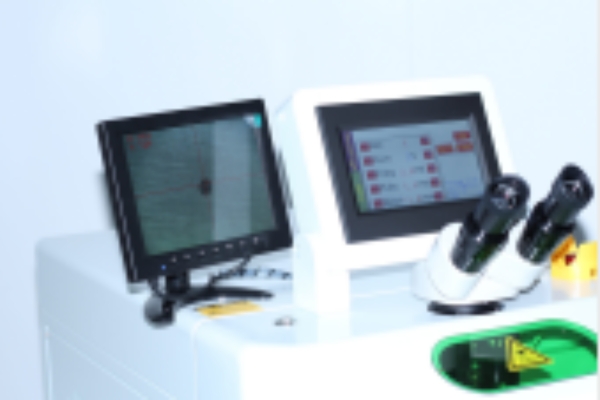

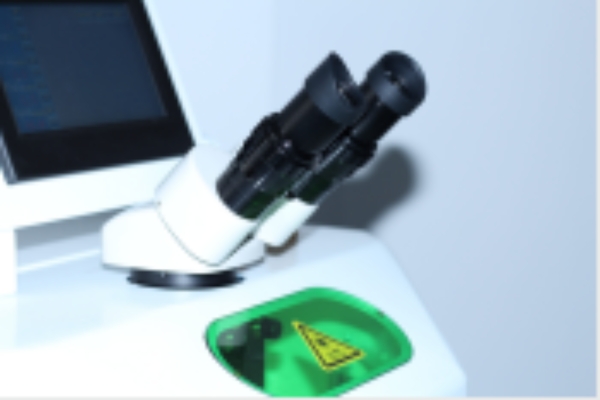

| Using a concentrated laser beam, the machine can precisely weld small and intricate parts without damaging surrounding materials or gemstones. This makes it particularly suitable for repairing and assembling high-value jewelry pieces made from precious metals such as Gold and Silver, as well as platinum and other fine metals. | High Quality Microscope HD Microscope providing you watch very clear where do you weld position and weld result. | High-performance stable power supply The power supply is one of most core part for complete laser welding machine, a high-performance and stable power supply can be selected to assemble a high-quality laser jewelry welding machine. |
 |  |  |

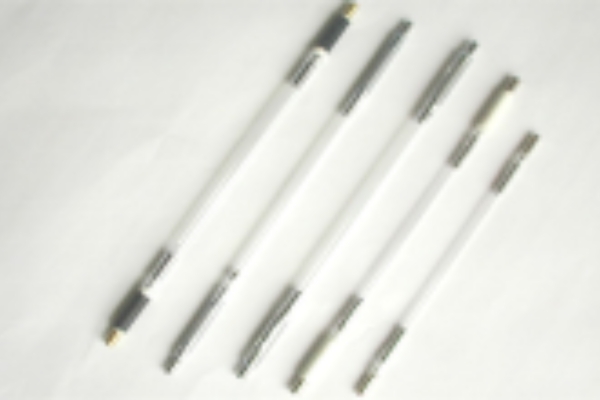

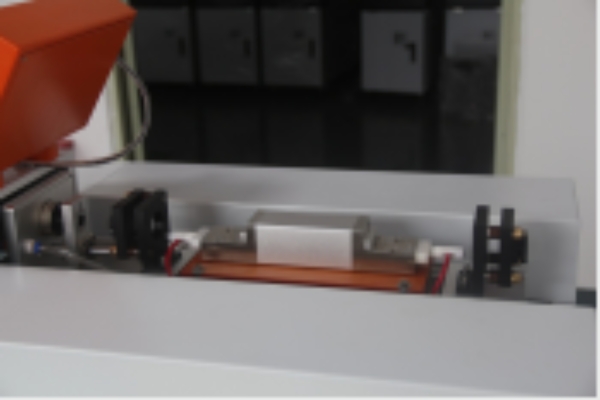

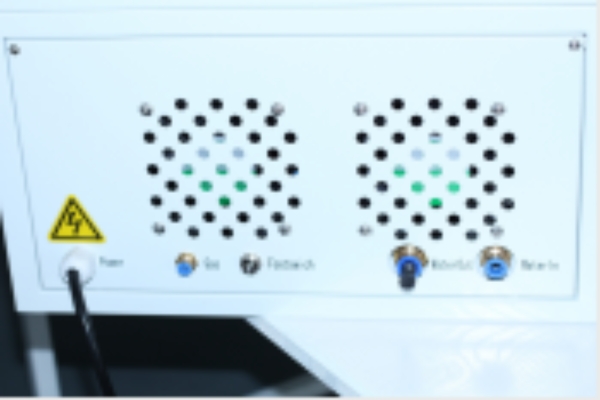

| Connection ports, easy to connect and operate, friendly for new users. | Ceramic laser cavity：Provide a platform for energy conversion of crystals and xenon lamps | Xenon lamp： provide energy to the crystal |
 |  |  |
| Crystal： Laser amplified working substance | External CCD camera system: Optional part | Built-in CCD camera system: Optional part |
Technical parameters of Jewelry Laser Welding Machine
| Number | Name | Technical parameter |
| 2 | Laser type | YAG technology |
| 2 | Laser wavelength | 1064nm |
| 3 | Interior-input power | 3KW |
| 4 | Output power | 200W |
| 5 | Max single-pulse energy | 100J |
| 6 | Laser wave length | 1064nm |
| 7 | Laser Spot diameter | 0.3--2.5mm |
| 8 | Flash lamp lifespan | 3,000,000 times |
| 9 | Capacity control | 1--100% |
| 10 | Pulse width regulation | 0.1--20ms |
| 11 | Frequency regulation | 1--50HZ |
| 12 | Work focal length | F=110mm |
| 13 | Cooling system | Built-in water cooler |
| 14 | Type of water | Distilled water or pure water |
| 15 | Working voltage | AC 220V ±10% 50/60Hz |
| 16 | Attaching plug | European, American, and English standards (customizable) |
| 17 | language | China, Britain, South Korea and Russia (customizable) |
| 18 | CCD | The 720P is Optional |

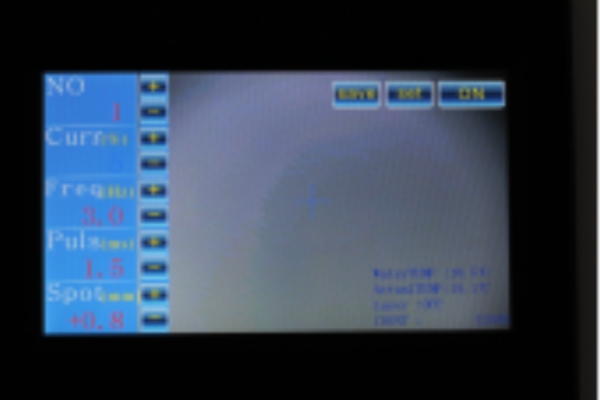

| 19 | Monitor | 8 inches with crosshairs |
| 20 | Microscope | 10X |
| 21 | Warranty period | 12 months |
| 22 | Package size and weight | 940*580*730mm 85KG |
Application of Jewelry Laser Welding Machine
