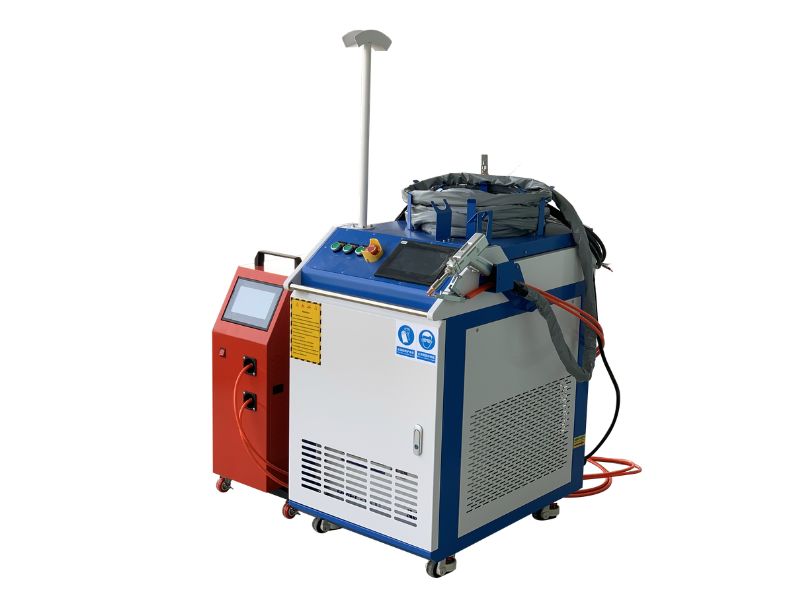

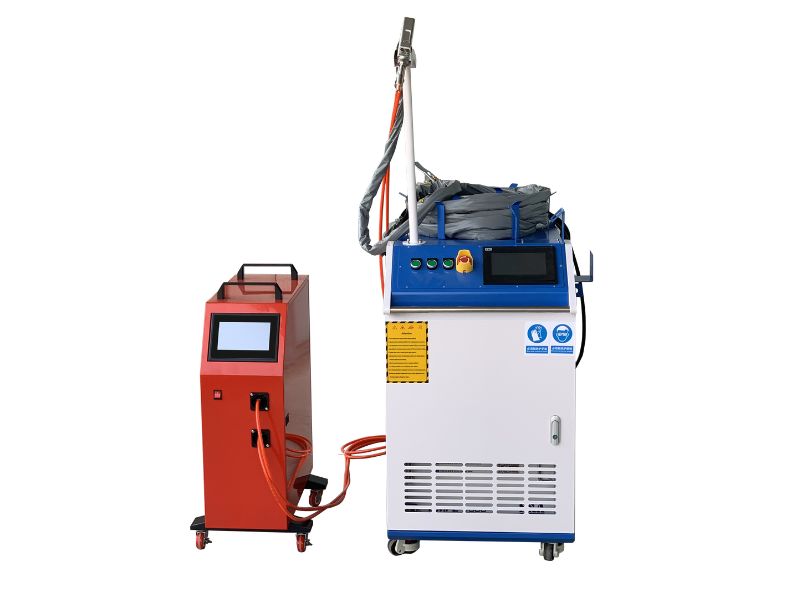

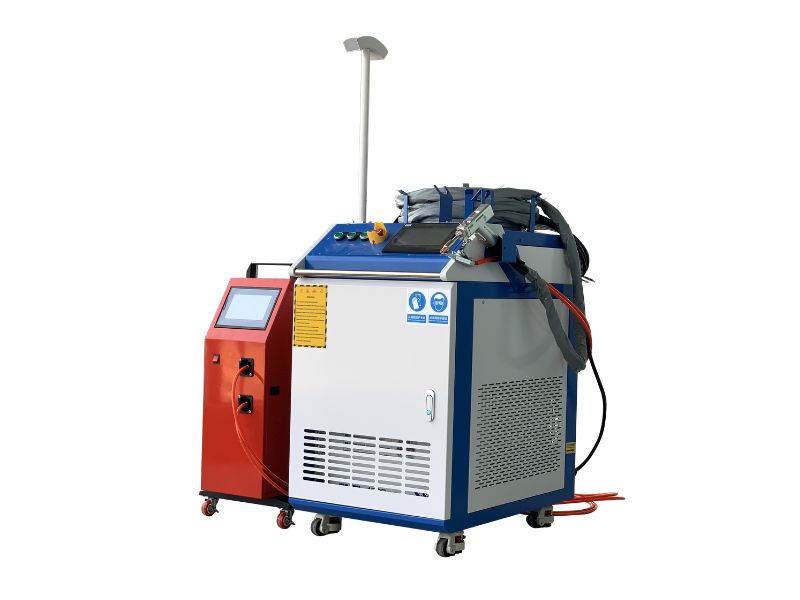

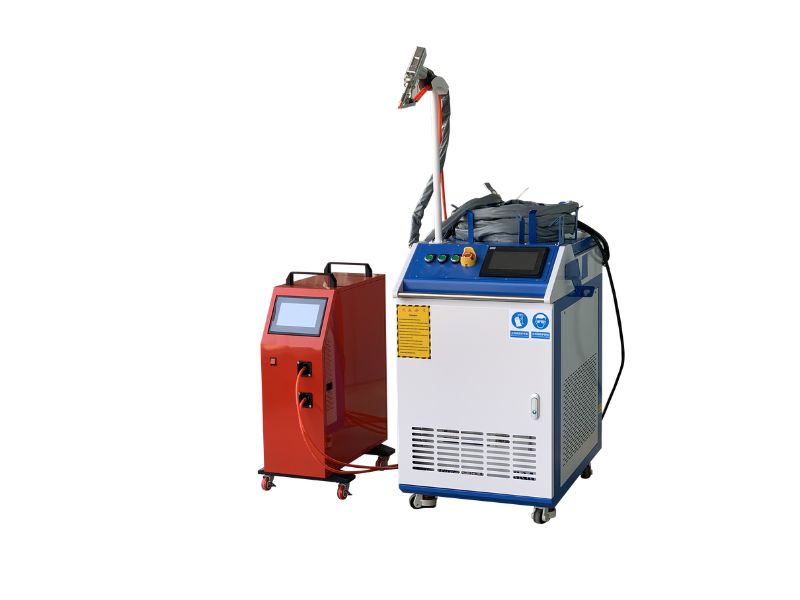

Home Laser Welding Machine 1500W 2000W 3000W 6000W 4 in 1 Handheld Fiber Laser Welding/Cleaning/Cutting Machine

Cutting Machine

Model: Rofer-W-1500W,Rofer-W-2000W,Rofer-W-3000W, Rofer-W-6000W

Laser Power: 1500w, 2000w, 3000w, 6000w

Application: It can be used to weld the metallic materials, like carbon steel, stainless steel, titanium, aluminum, etc.

Metals welding, metals cleaning, metals simple cutting

Inquire

General introduction : 4 in 1 Handheld Fiber Laser Welding Machine

The 4-in-1 handheld fiber laser machine integrates laser welding, laser cleaning, laser cutting and weld seam cleaning into one compact system. Designed for modern metal fabrication, this multi-functional laser solution significantly improves productivity while reducing equipment costs.

With a portable handheld laser gun, operators can easily switch between different working modes by replacing the nozzle and adjusting parameters on the intelligent control system. This machine is widely used in sheet metal processing, stainless steel fabrication, metal furniture, automotive parts, kitchen equipment, advertising signage and industrial manufacturing.

Compared with traditional welding methods such as TIG or MIG, fiber laser welding offers faster speed, minimal heat distortion, cleaner weld seams, and reduced post-processing, making it ideal for high-precision metal fabrication.

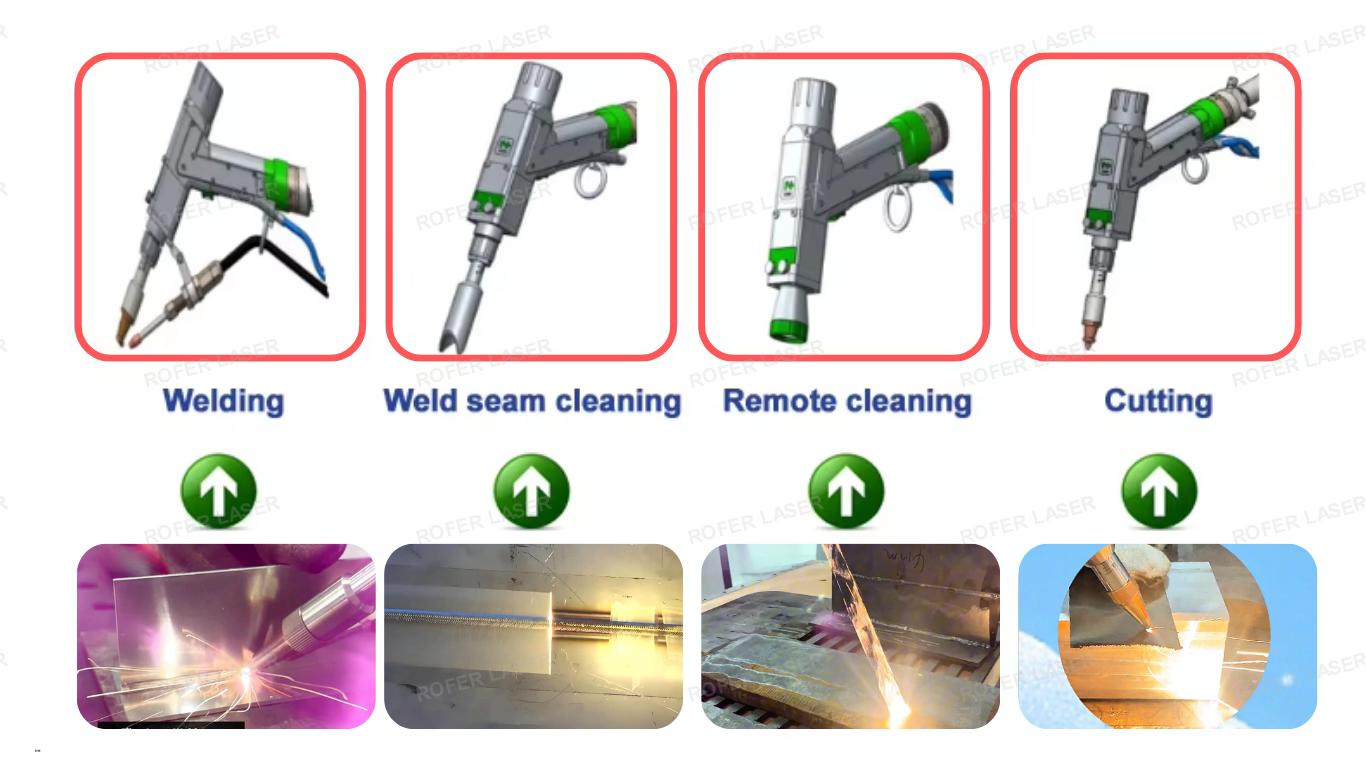

Four Powerful Functions in One Machine

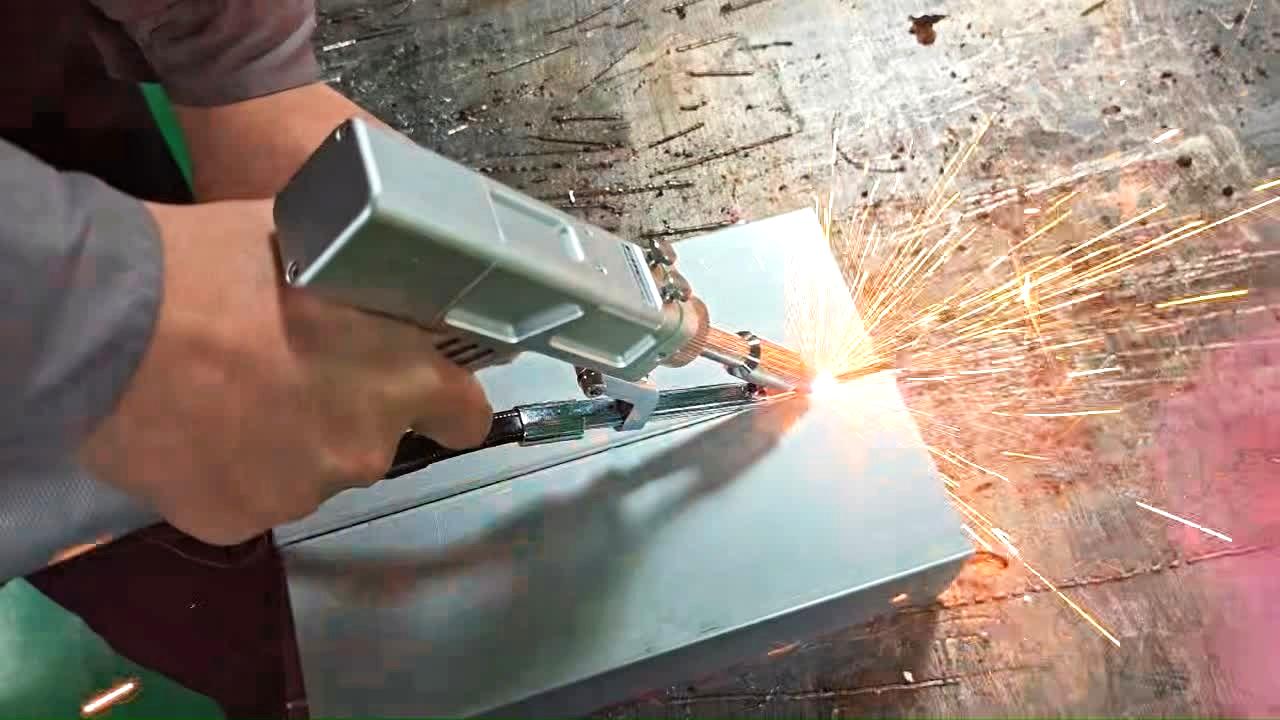

1.Laser Welding

The handheld laser welding mode provides deep penetration, smooth weld seams, and minimal deformation. Welding speed can be 2–10 times faster than traditional welding, greatly improving production efficiency.

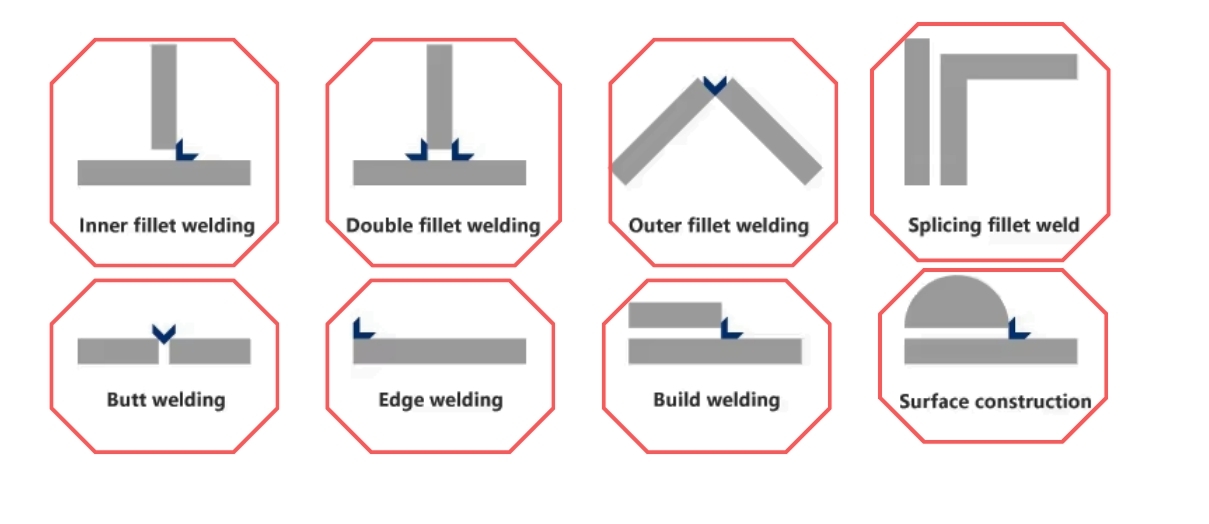

Supported welding types include:

Inner fillet welding

Double fillet welding

Outer fillet welding

Splicing fillet weld

Butt welding

Edge welding

Build welding

Surface construction

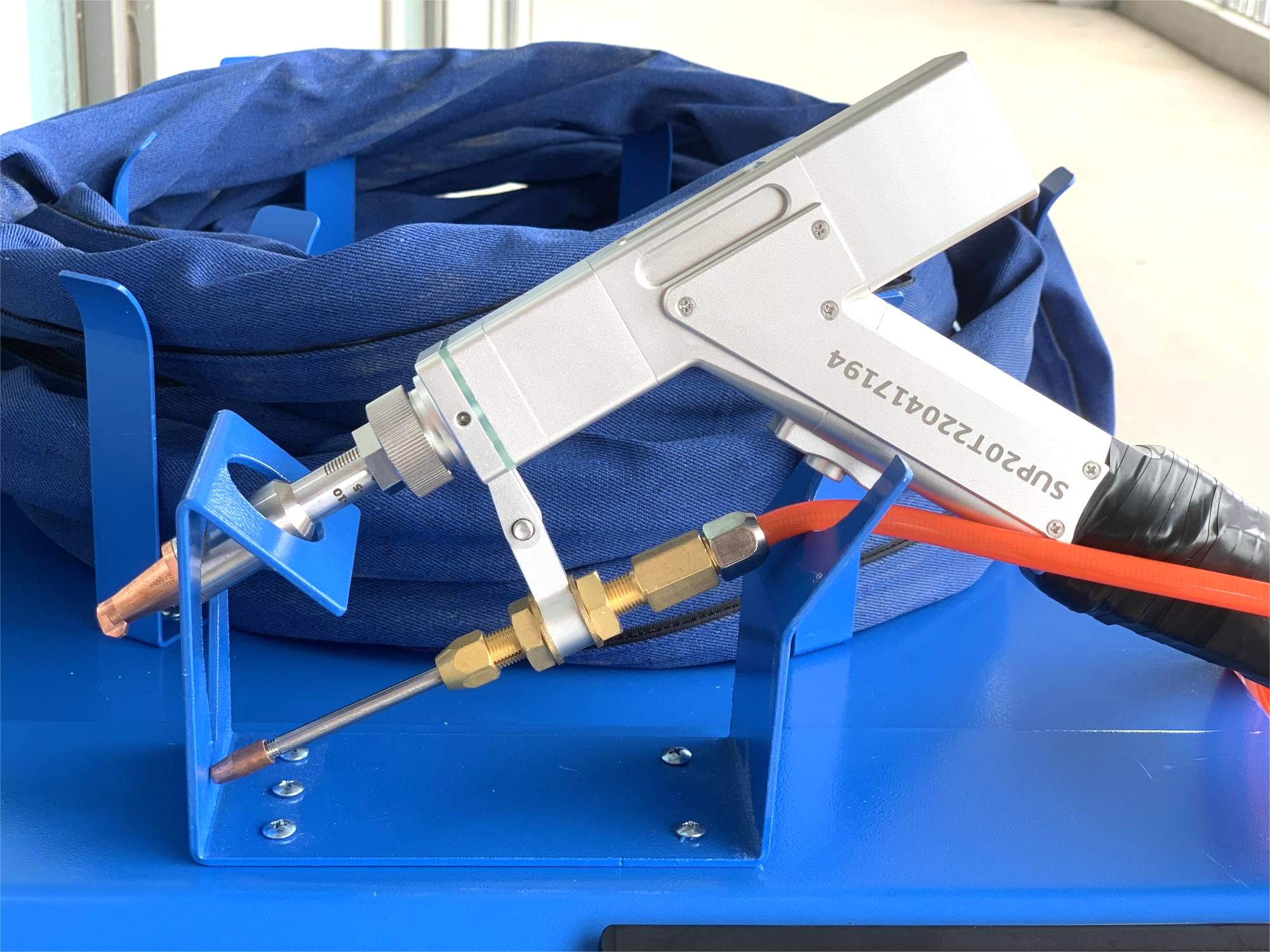

The optional automatic wire feeder ensures stable weld formation and strong joints for materials such as stainless steel, carbon steel, aluminum, and galvanized sheet.

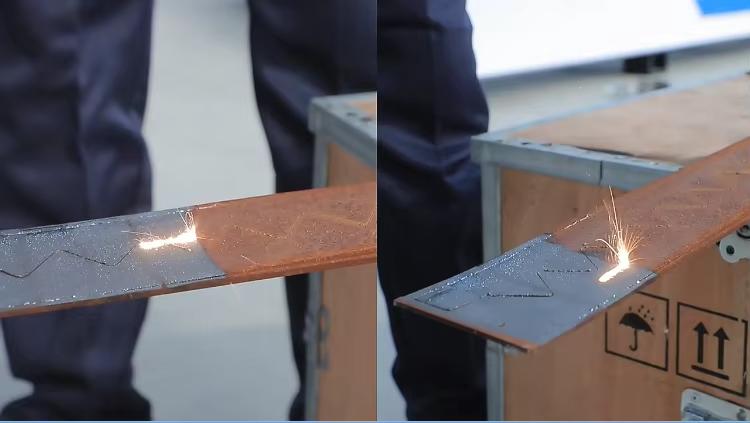

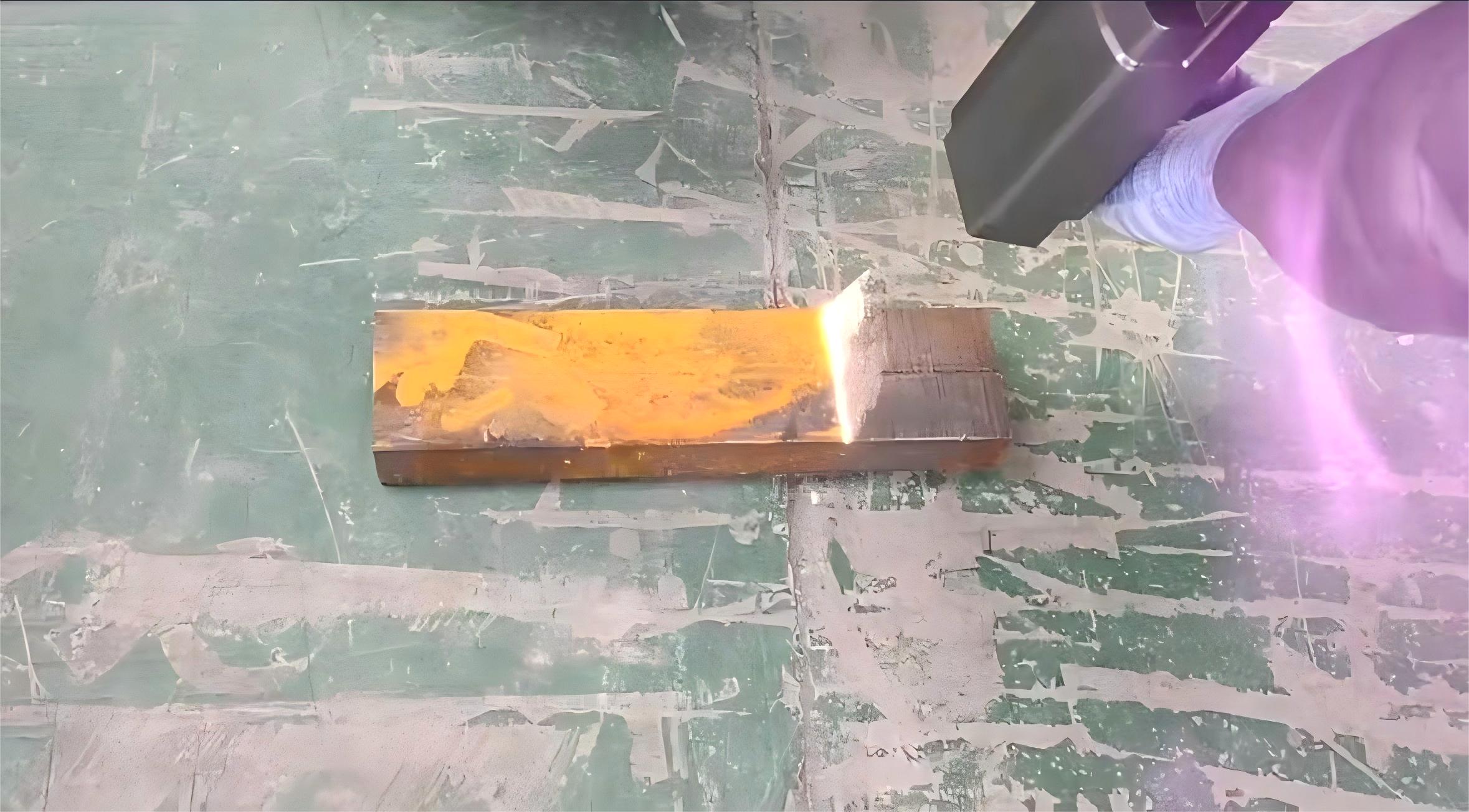

2.Laser Cleaning

Laser cleaning uses a non-contact laser beam to remove surface contaminants without damaging the base material.

Typical cleaning applications include:

● Rust removal

● Oil and grease cleaning

● Oxide layer removal

● Paint and coating stripping

●Weld seam cleaning

● Surface pretreatment before welding

Laser cleaning is eco-friendly and chemical-free, making it ideal for modern manufacturing environments.

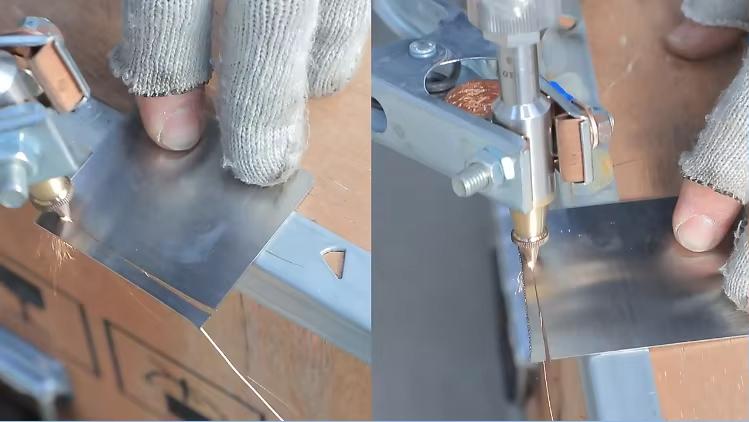

3.Laser Cutting

By replacing the welding nozzle with a cutting nozzle, the machine can perform thin metal cutting.

Typical cutting capability:

● Stainless steel

● Carbon steel

● Aluminum sheets

For thin metal sheets (typically 1–2 mm thickness), laser cutting provides smooth edges and high precision, making it suitable for small fabrication jobs and on-site repair work.

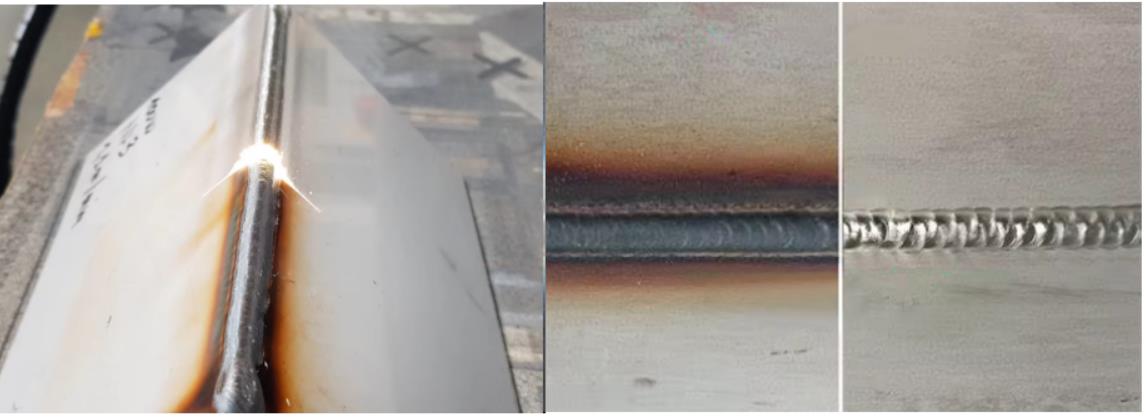

4.Weld Seam Cleaning

After welding, the system can switch to weld seam cleaning mode, which removes welding oxide, slag, and discoloration from the weld area, ensuring a clean and professional finish.

This eliminates additional polishing processes and improves the final product appearance.

Key Features of 4-in-1 Handheld Laser Machine

Multifunctional Integrated Design

One machine integrates four processes, reducing equipment investment and saving workspace.

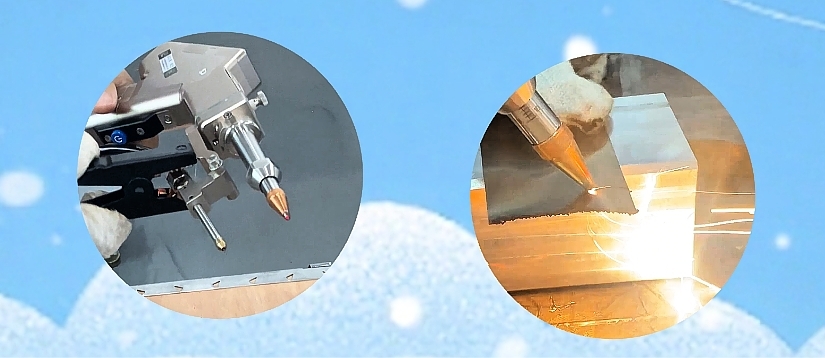

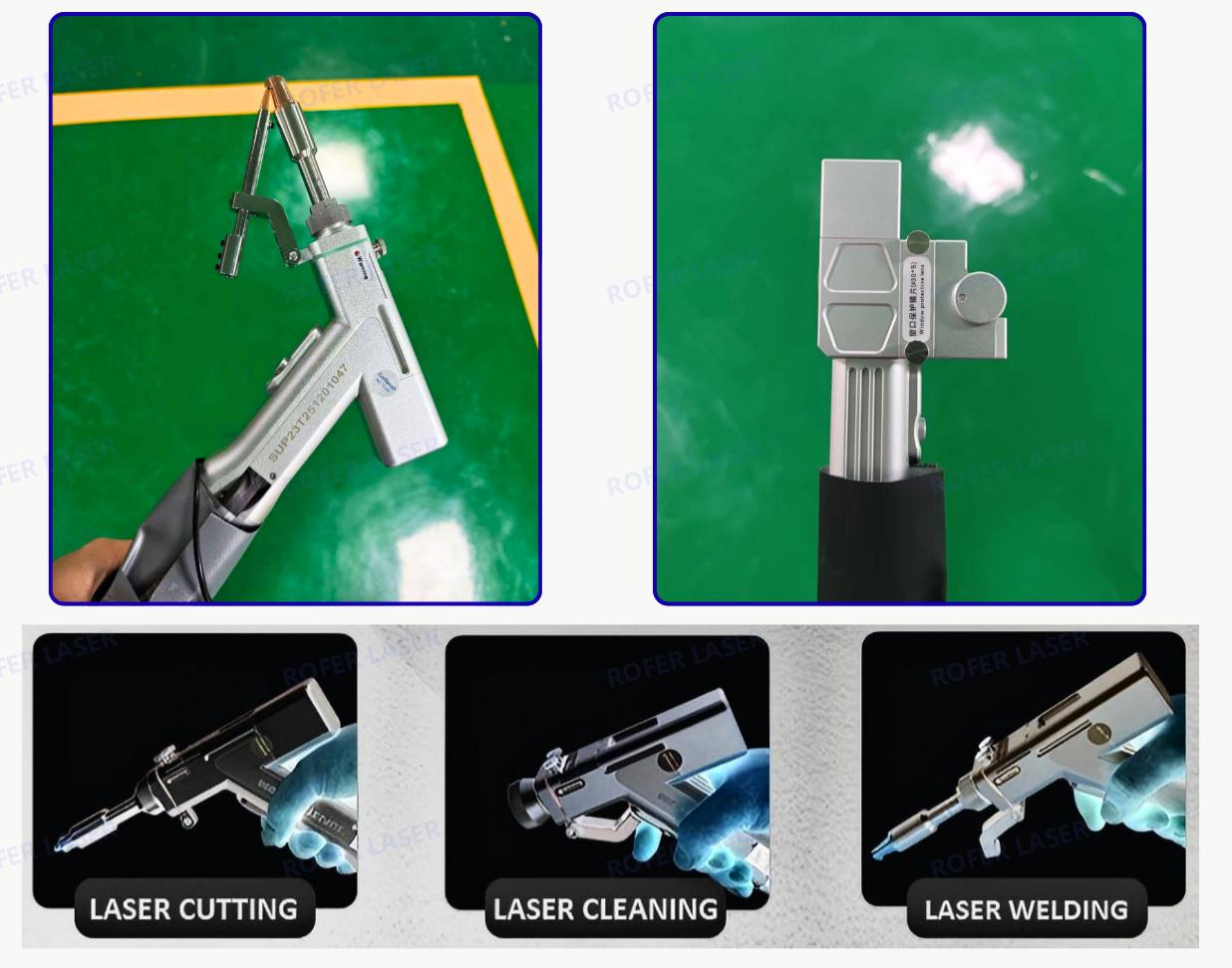

Portable Handheld Welding Gun

The ergonomic handheld laser head is lightweight and flexible, allowing welding from multiple angles and positions, laser cleaning and laser cutting.

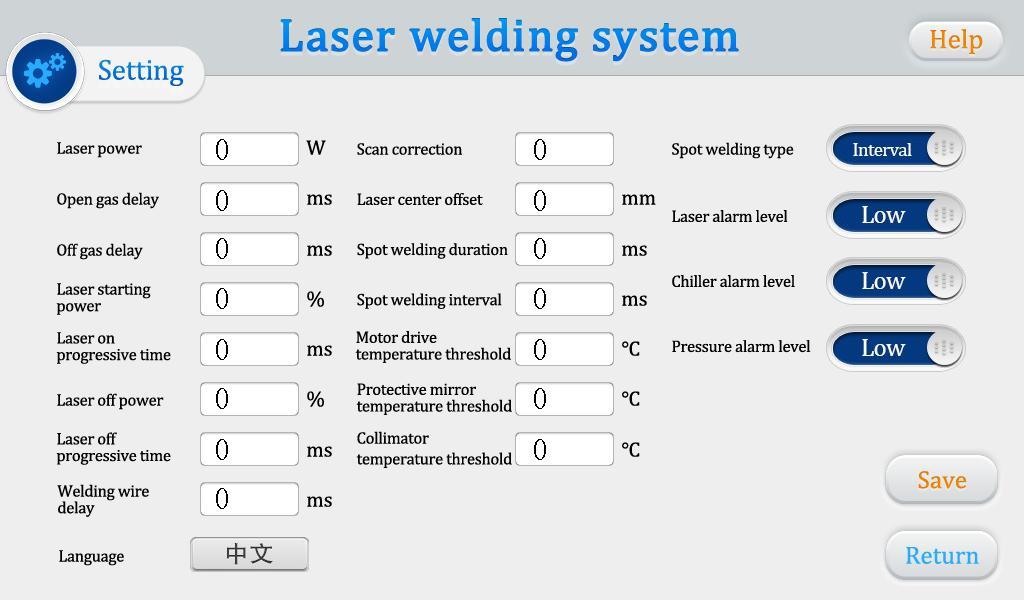

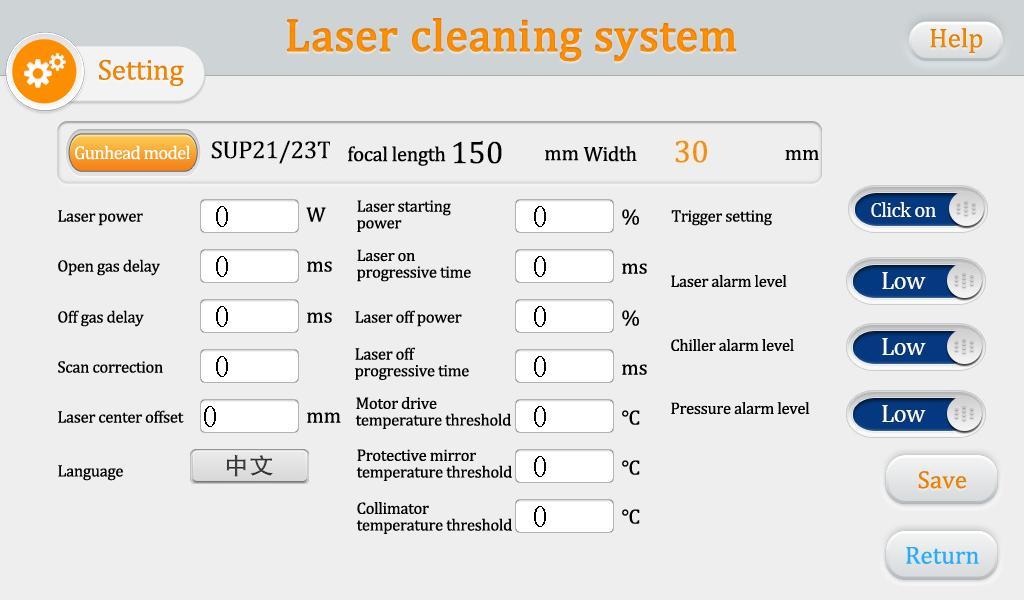

Intelligent Control System

Touchscreen control with preset parameters enables fast switching between welding, cleaning, and cutting modes.

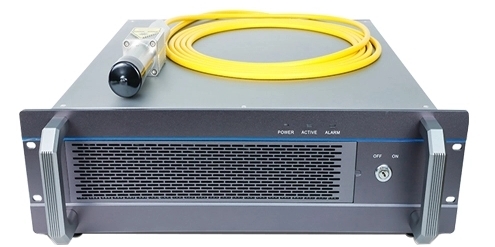

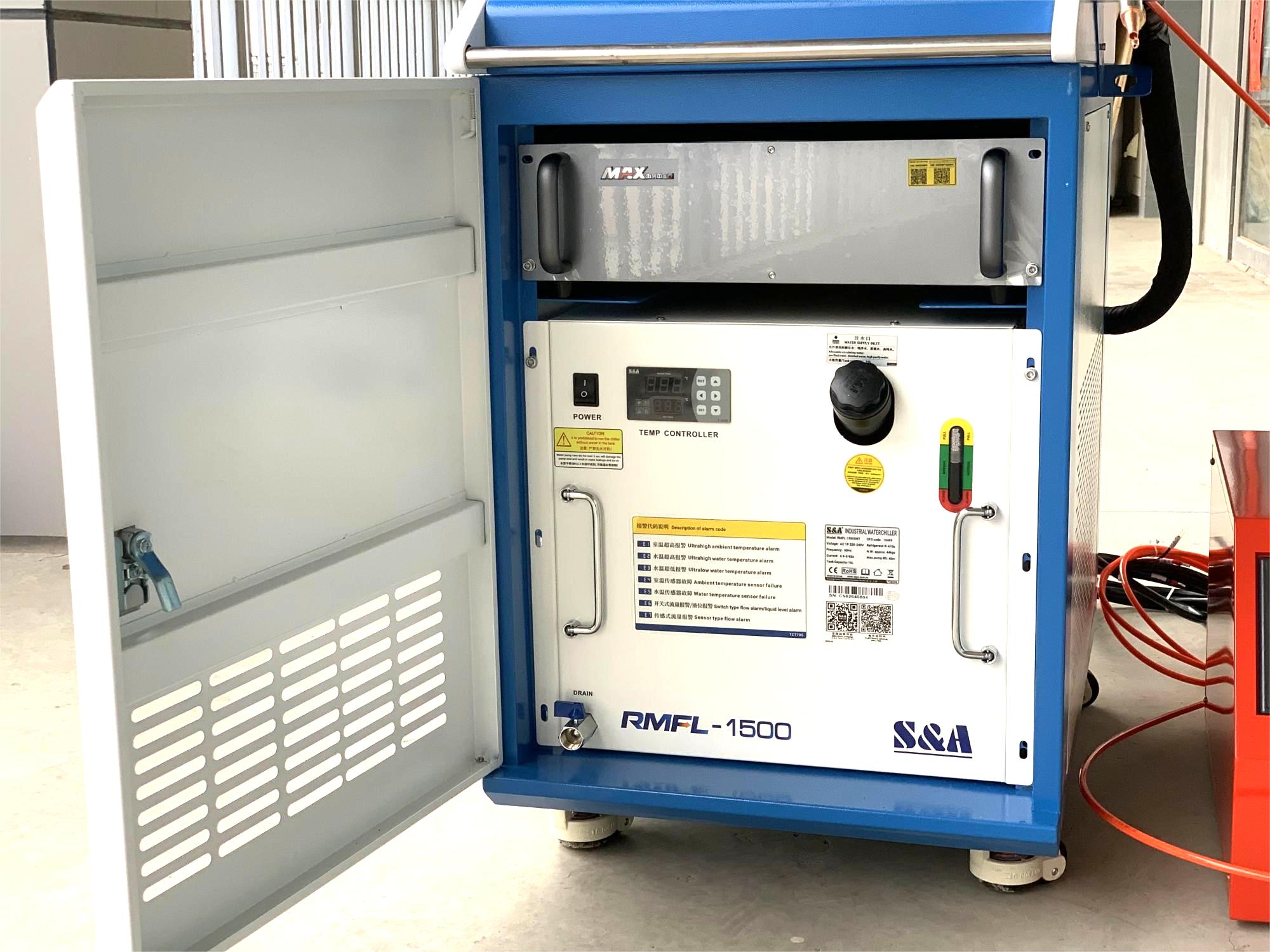

High-Efficiency Fiber Laser Source

Compatible with industry-leading fiber laser brands such as Raycus, MAX, JPT, or IPG, ensuring stable beam quality and long service life.

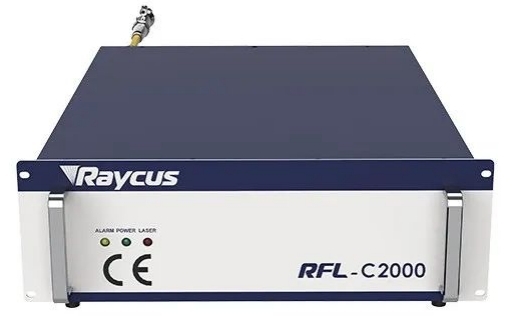

Maxphotonics brand laser source	Raycus brand laser source	JPT brand laser source

Adjustable Laser Spot

Laser spot diameter can be adjusted between 0.2 mm and 5 mm, allowing precise control for different materials and thicknesses.

Environmentally Friendly Processing

Laser processing requires no chemicals, abrasives, or consumable materials, reducing operational costs and environmental impact.

Technical Parameters of 4 in 1 Handheld Fiber Laser Welding Machine:

Model number: Rofer-W-1500W,Rofer-W-2000W,Rofer-W-3000W, Rofer-W-6000W	Water cooler capacity: 18 litres
Laser power: 1500W 2000W 3000W 6000w	Type of water: Distilled water or pure water
Laser type: fiber technology	Machine color: Red / blue /black
Laser wavelength: 1080nm	Wire feeder: option part
Fiber laser source: IPG / Raycus /Max / JPT	Wire feeder diameter: 0.8mm 1.0mm 1.2mm 1.6mm
Weld head: Wobble weld head (Depending on brands)	Type of gas: Argon/Nitrogen gas
Weld width:1 - 5mm	Air pressure:3 to 5 bar / 0.3 to 0.5 Mpa
Welding head weigt: 0.8kg (depending on brands)	Power required: 1000W 1500w: AC 220V ±10% 50/60Hz 1 Pha2000w 3000w 6000w: AC 380V±10% 50/60Hz 3Pha.
Control system: Gefasst Sup23T / Qilin/ Raytools	Total power:8kw / 9kw / 12 kw
Weld mode system: CW/ PWM / Argon Arc	Warranty period: 24 months for laser source
Weld speed: 0-120mm/s	Weld method:Flat / Horizontal /Vertical /Overhead
Cooling system: Water chiller	Language:English, Korean, Japanese, Russian, French, Spanish, Israeli
Consumable part: Protection lens , Brass nozzle

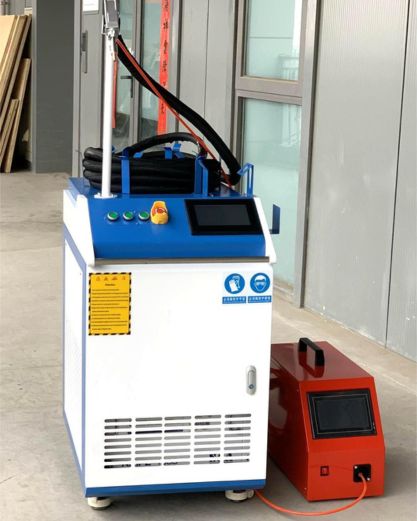

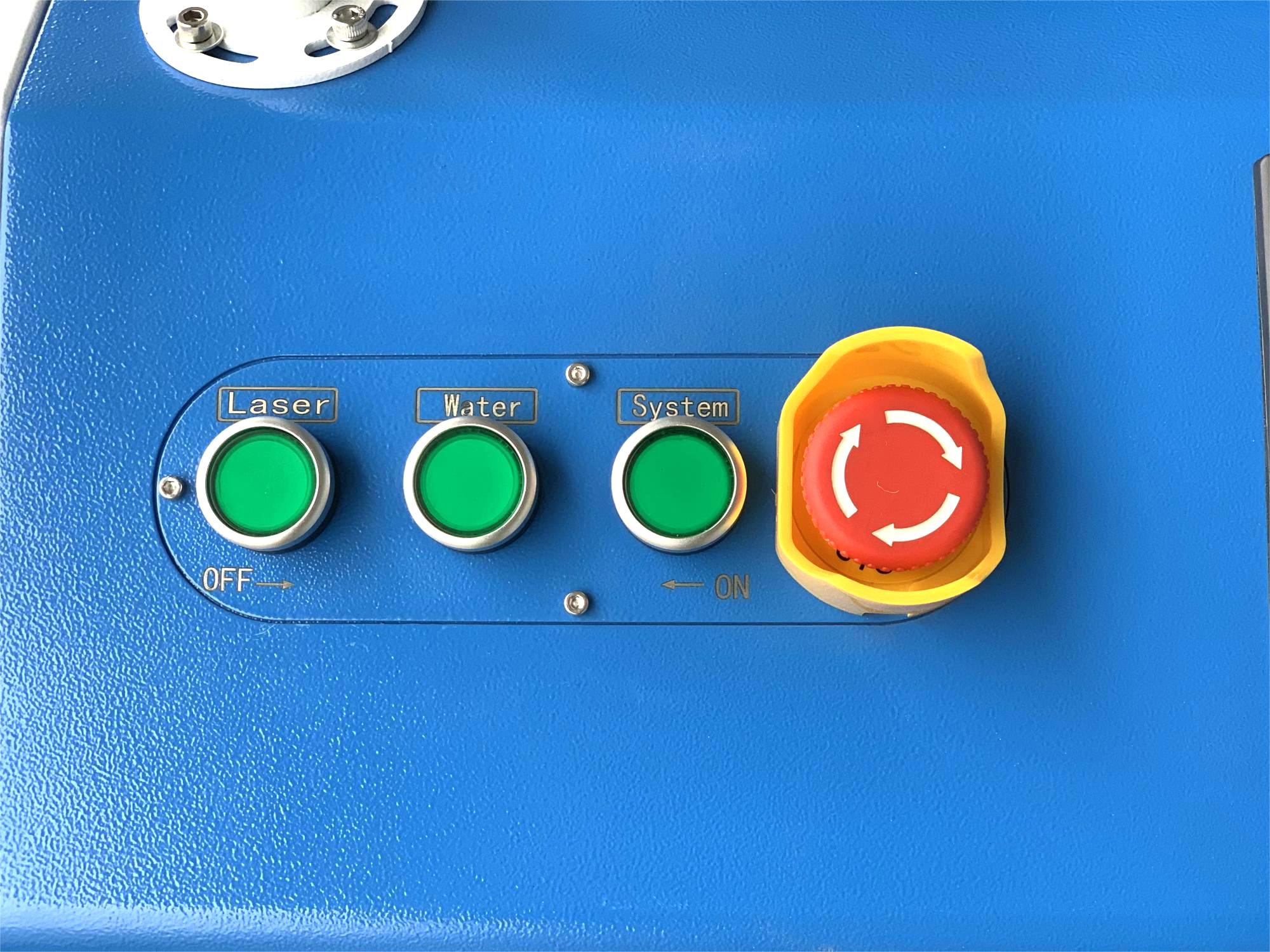

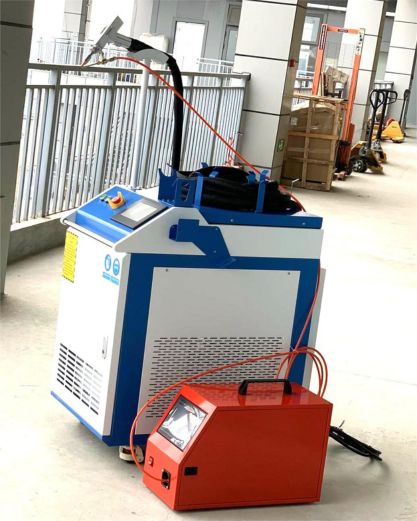

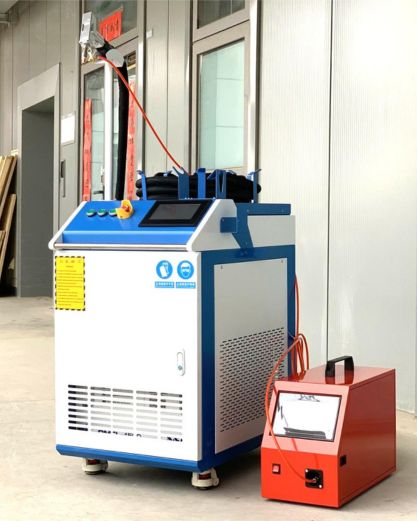

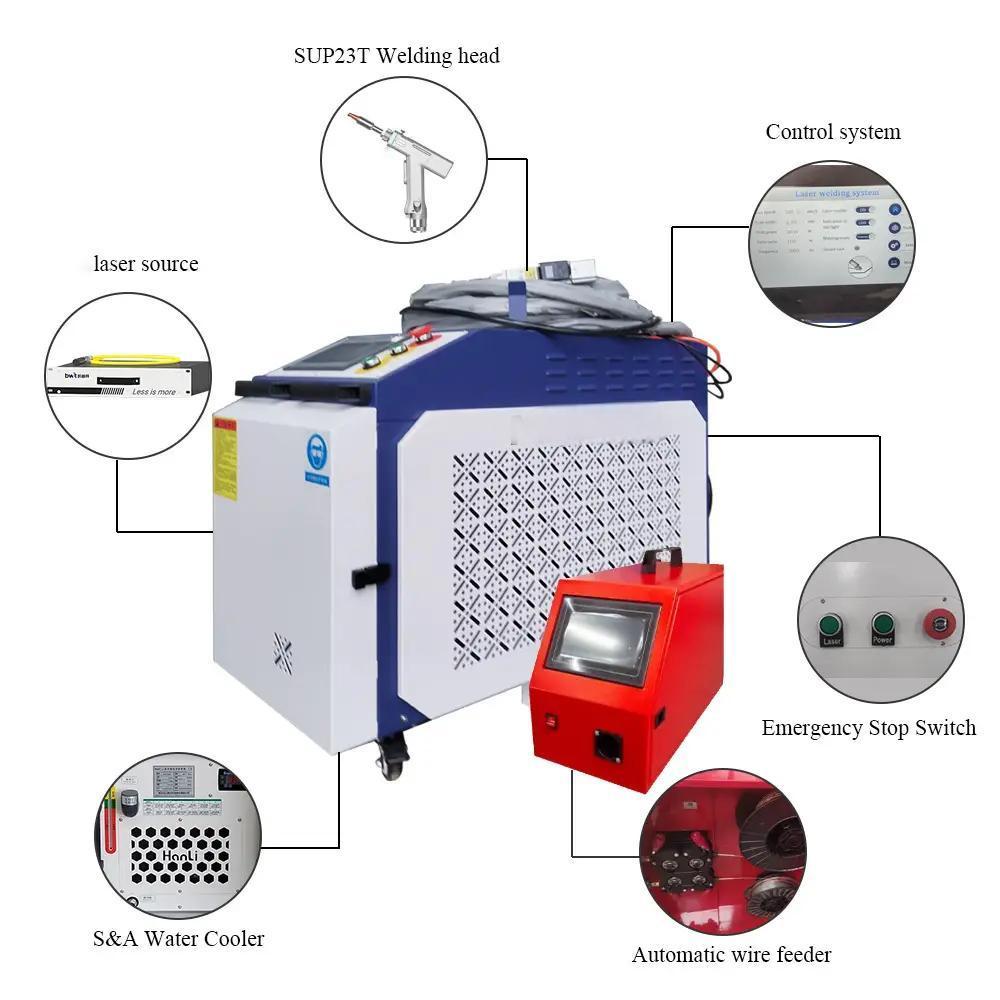

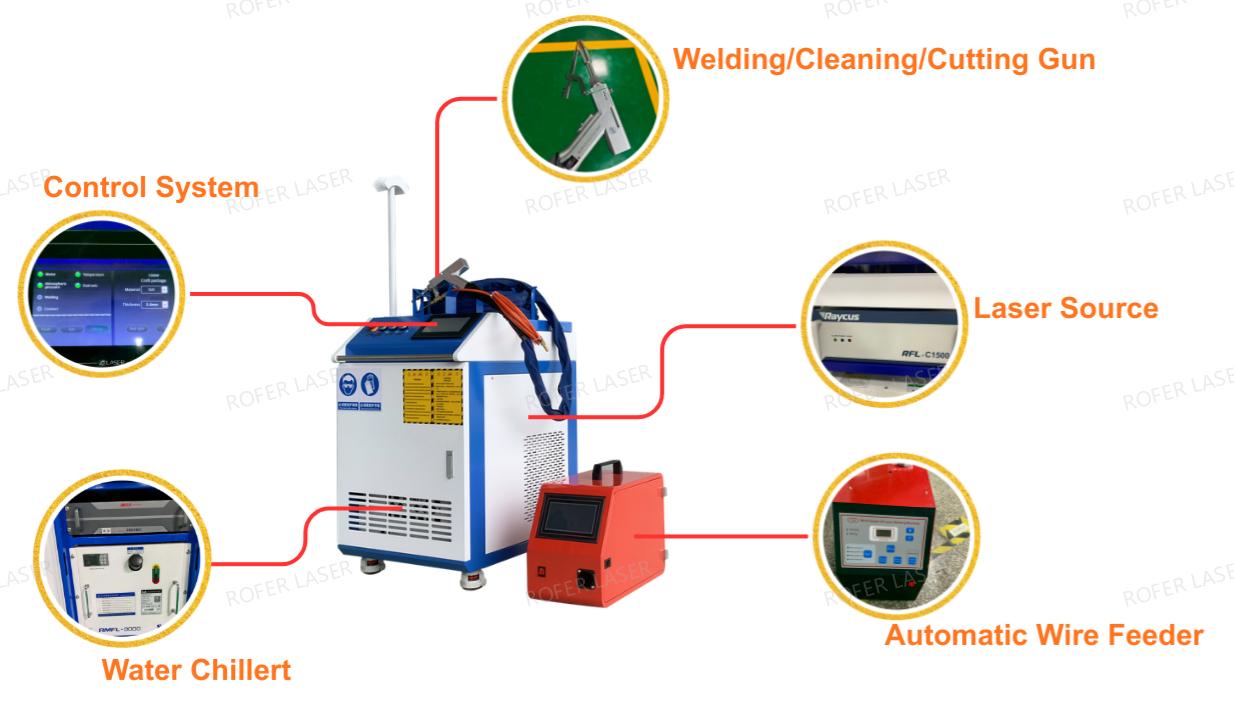

4 IN 1 Handheld Fiber Laser Welding Machine Details:

4 IN 1 Handheld Fiber Laser Welding Machine Applications:

It can weld metallic, such as stainless steel, carbon steel, aluminum, galvanized sheet, brass, etc. It is widely applied in advertising industry, high pressure / low voltage electrical cabinet production, textile machinery accessories, kitchen appliances, cars, machinery, elevators, electrical accessories, spring coil pieces, metro line parts and other industries.

It is widely used in stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel home and other industries complex irregular welding process.

1. Sheet Metal Fabrication

Handheld fiber laser welding machines are extensively used in sheet metal processing for welding stainless steel, carbon steel, and aluminum parts. The technology provides clean and precise welds, making it ideal for cabinets, enclosures, frames, and other metal structures.

2. Kitchen Equipment Manufacturing

In the commercial kitchen equipment industry, laser welding is commonly used for producing stainless steel products such as sinks, cabinets, countertops, and kitchen appliances. The smooth weld seams improve both the strength and appearance of the products.

3. Metal Furniture Production

Manufacturers of metal furniture such as chairs, tables, cabinets, metal doors, window frames, railings,security structures and shelves benefit from the precision and aesthetics of laser welding. The clean weld seam reduces the need for grinding and polishing.

4. Automotive Parts Manufacturing

In the automotive industry, handheld fiber laser welding machines are used for welding various metal components such as brackets, exhaust parts, body panels, and structural components.

5. Elevator and Stainless Steel Decoration Industry

The machine is suitable for welding elevator panels, decorative stainless steel sheets, handrails, and architectural metal components, where weld quality and appearance are critical.

6. Metal Pipe and Tube Fabrication

The machine is also used for welding metal pipes, tubes, and frames, particularly in applications requiring precise joints and minimal distortion.

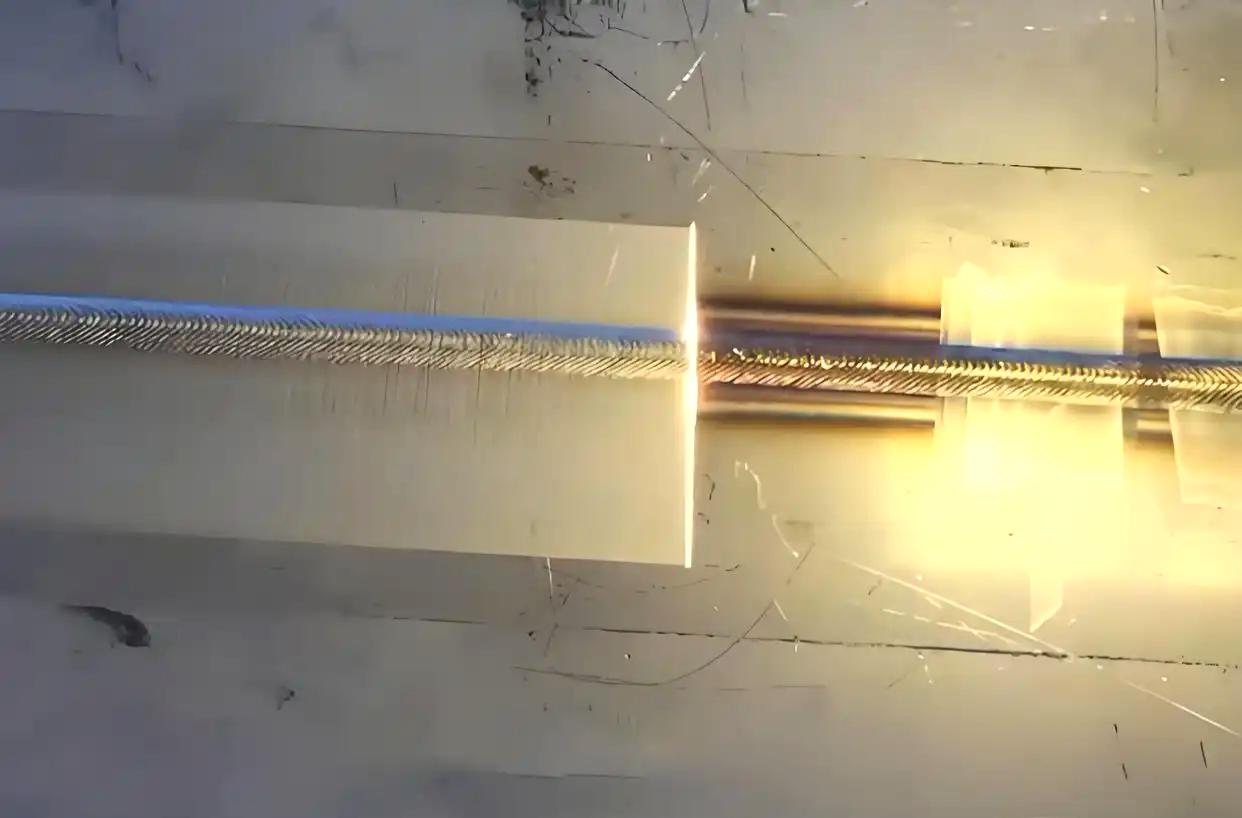

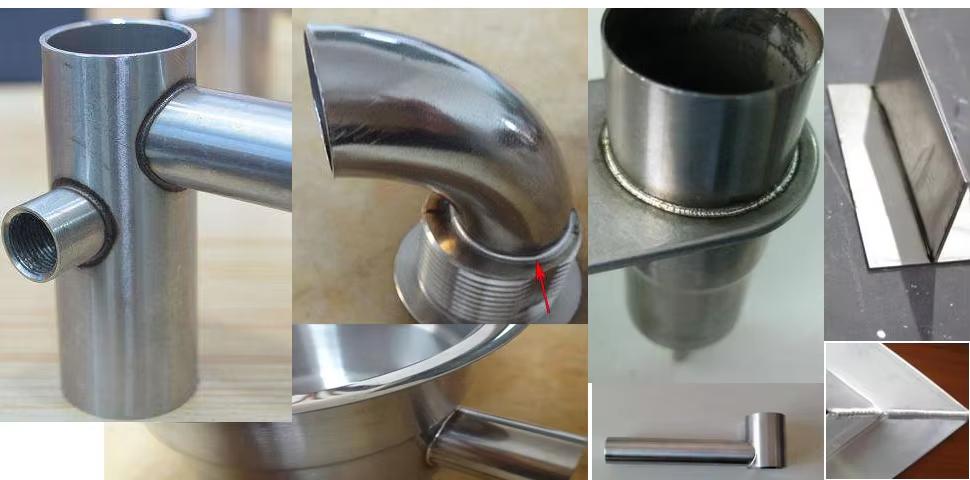

4 IN 1 Handheld Fiber Laser Welding Machine Samples:

4 IN 1 FIBER LASER WELDING MACHINE WELDING SAMPLES:	4 IN 1 FIBER LASER WELDING MACHINE CLEANING SAMPLES

4 IN 1 FIBER LASER WELDING MACHINE CUTTING SAMPLES	4 IN 1 FIBER LASER WELDING MACHINE WELD SEAM CLEANING SAMPLES

FAQs of 4 in 1 Handheld fiber laser welding machine

1. What is a 4 in 1 handheld fiber laser welding machine?

A 4 in 1 handheld fiber laser welding machine is an advanced welding system that uses a high-energy fiber laser beam to join metal materials. The machine features a portable handheld welding gun, allowing operators to perform precise and efficient welding on various metal parts with ease, also can do laser cleaning and laser cutting. Multifunctional handheld laser welding/cleaning/cutting machine.

2. What materials can be welded with a handheld laser welder?

3. What thickness can a handheld fiber laser welding machine weld?

4. Is handheld laser welding easy to learn?

5. Does the machine require special shielding gas?

6. What maintenance is required for a handheld laser welding machine?

7. What industries commonly use handheld laser welding machines?
