Home Products Laser Welding Machine 700w 900w 1200w 1500w 2000w 3000w Portable Laser Welding Machine With Refrigerant Gas

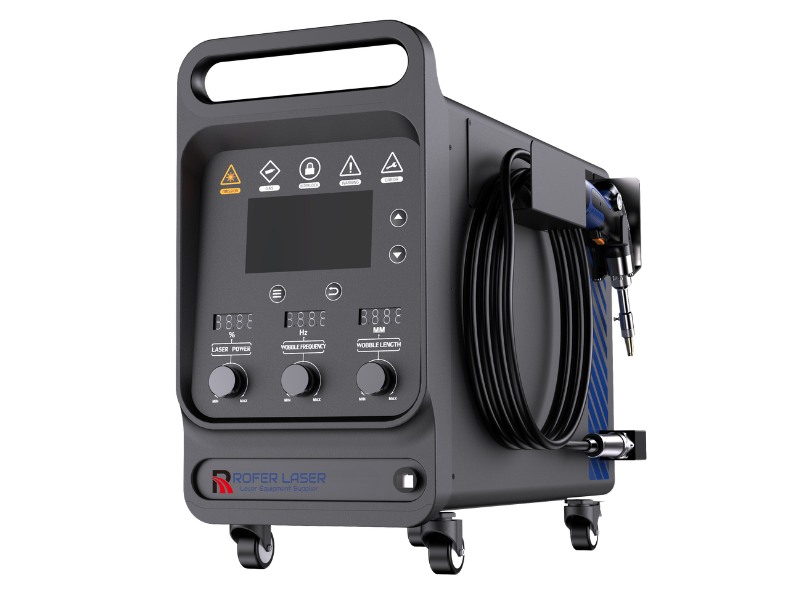

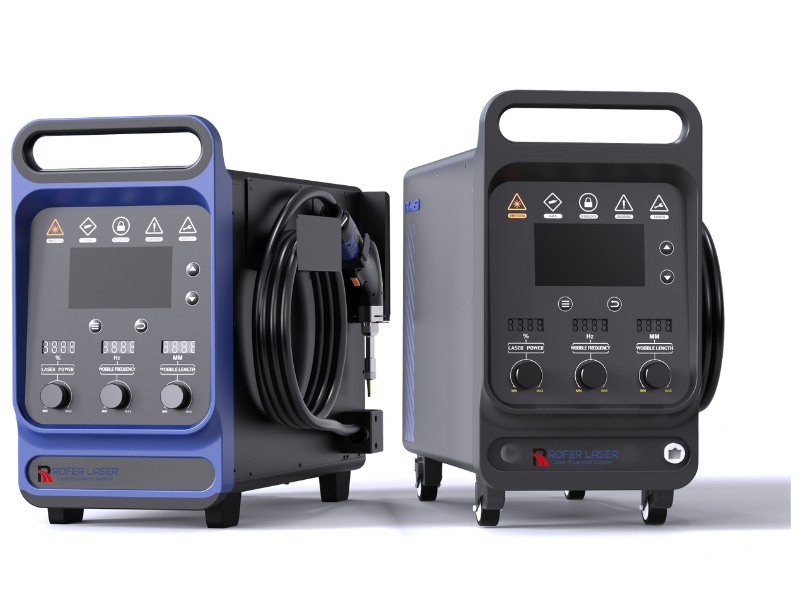

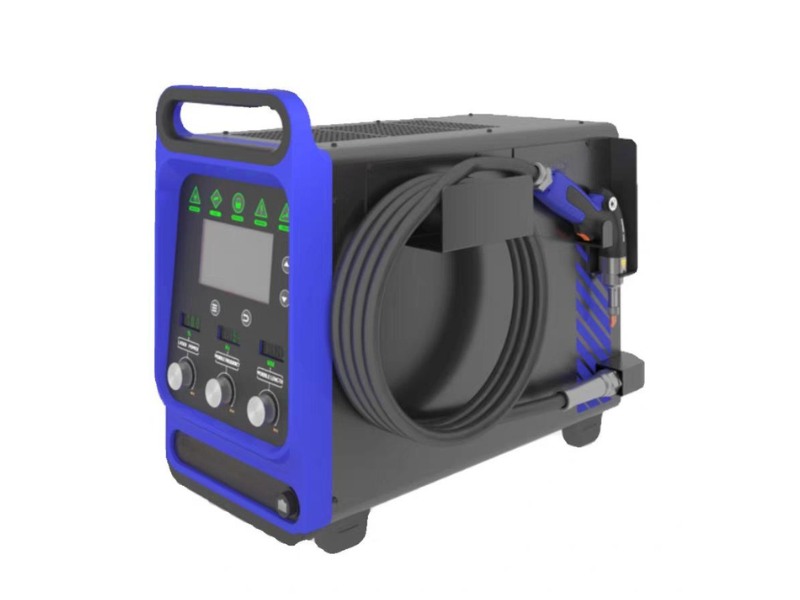

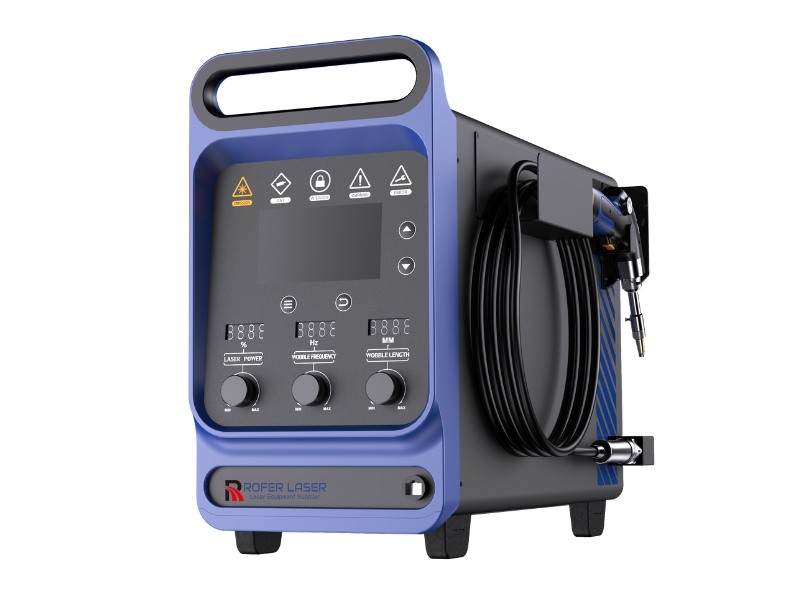

700w 900w 1200w 1500w 2000w 3000w Portable Laser Welding Machine With Refrigerant Gas

Model: Rofer-W-200, Rofer-W-350, Rofer-W-450, Rofer-W-550, Rofer-W-850,

Laser Power: 700w, 900w, 1200w, 1500w, 2000w, 3000w

Application: It can be used to weld the metallic materials, like carbon steel, stainless steel, titanium, aluminum, etc.

Inquire

General introduction :

The Portable Laser Welding Machine With Refrigerant Gas adopts an advanced refrigerant gas cooling system, which provides stable temperature control without the need for bulky traditional water chillers. The integrated cooling structure ensures reliable performance, compact size, and improved portability, making the equipment ideal for workshops, field work, and flexible production environments.

Compared with conventional welding technologies such as TIG Welding and MIG Welding, the portable laser welding machine with Refrigerant Gas

offers several advantages, including faster welding speed, minimal heat distortion, deeper penetration, and clean weld seams with little or no post-processing. Even operators with limited welding experience can quickly learn to use the system thanks to its ergonomic handheld welding gun and intelligent control interface.

Refrigerant Laser Welding Machine Main Feature:

Multiple power options from 700W to 3000W.

Refrigerant gas cooling system for stable and efficient operation.

Designed to be High and low temperature resistant and free of faults when welding at -20 ℃-60 ℃;

High welding speed and excellent weld quality.

Low heat input and minimal material deformation.

Easy operation with quick learning.

Low maintenance cost compared with traditional welding systems.

Refrigerant Laser Welding Machine Technical Parameters :

Items	Unit	Rofer-W-200	Rofer-W-350	Rofer-W-450	Rofer-W-550	Rofer-W-550Pro	Rofer-W-850
Rated input power supply	-	Single Phase 220v							Three-phase 380v
Input power frequency	Hz	50/60
Laser power	W	700	900	1200	1500	2000	3000
Rated input power	W	3200							10500
Welding speed	Cm/min	20-200
Cooling model	-	Dual-circuit refrigerant direct cooling
Working temperature	℃	-30~60
Storage temperature	℃	-40~85
Working humidity	%	0-90
Product dimensions	mm	675310580
Product dimensions (excluding casters/pad and handle)	mm	675310457
Product weight	kg	38
Applicable wire diameter	mm	0.8/1.0/1.2/1.6						Single feed mode/Double feed mode0.8/1.0/1.2/1.6/2.0
Output mode	-	Integrated armored cable+welding torch
Armored cable length	m	5/10/15/20 (Customizable)
Welding mode	-	Spot welding/Continuous spot welding/Pulse welding/Continuous welding

Refrigerant Laser Welding Machine Applications:

It can weld metallic, such as stainless steel, carbon steel, aluminum, galvanized sheet, brass, etc. It is widely applied in advertising industry, high pressure / low voltage electrical cabinet production, textile machinery accessories, kitchen appliances, cars, machinery, elevators, electrical accessories, spring coil pieces, metro line parts and other industries.

It is widely used in stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel home and other industries complex irregular welding process:

● Sheet Metal Fabrication

● Kitchen Equipment Manufacturing

● Metal Furniture Production

● Automotive Parts Manufacturing

● Door and Window Processing

● Advertising Signage Industry

● Hardware and Metal Products Manufacturing

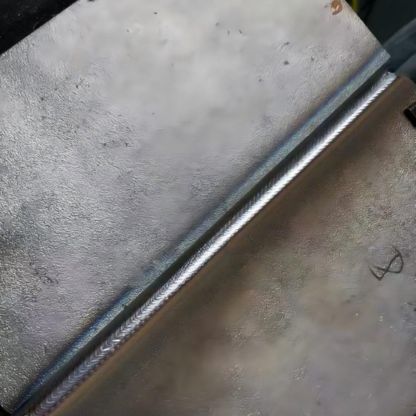

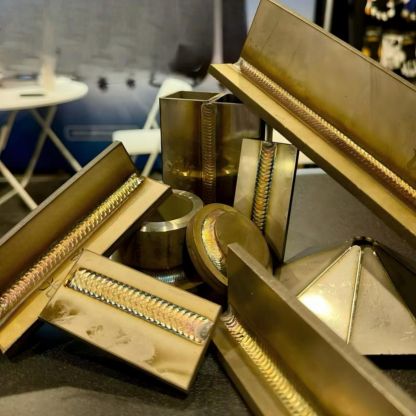

Refrigerant Laser Welding Machine Samples

Refrigerant Handheld Fiber Laser Welding Machine – FAQ

1. What is a handheld fiber laser welding machine?

A handheld fiber laser welding machine is an advanced welding system that uses a high-energy fiber laser beam to join metal materials. The machine features a portable handheld welding gun, allowing operators to perform precise and efficient welding on various metal parts with ease.

2. What materials can be welded with a handheld laser welder?

3. What thickness can a handheld fiber laser welding machine weld?

4. Is handheld laser welding easy to learn?

5. Does the machine require special shielding gas?

6. What maintenance is required for a handheld laser welding machine?

7. What industries commonly use handheld laser welding machines?
